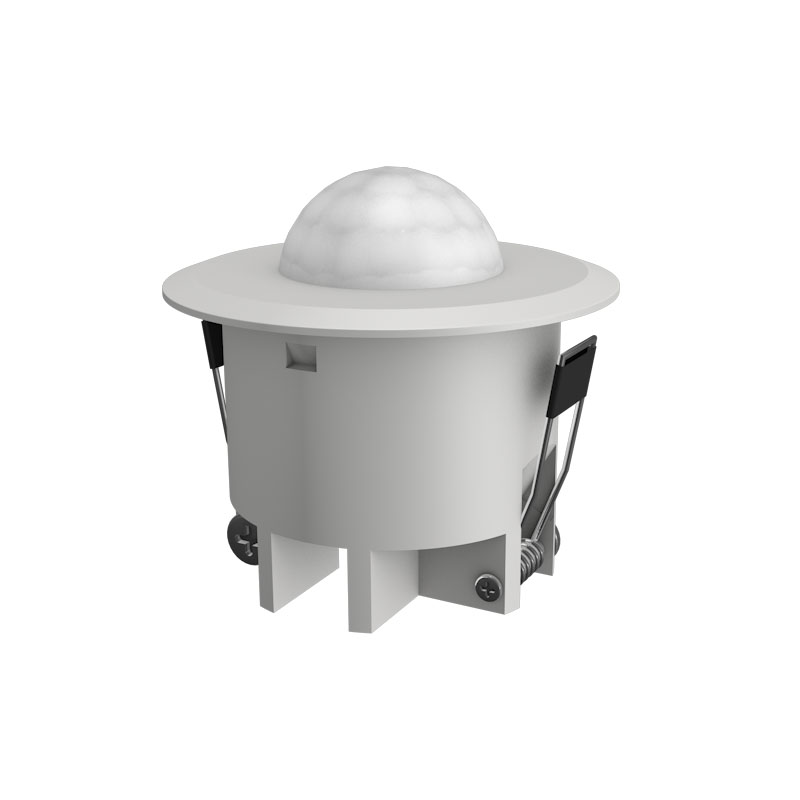

KNX Compact IR Motion Sensor
Model No:KE.SNR0101
KNX Compact IR Motion Sensor, Flush Mount，KNX Bus
Contact Us
Wiring Diagram
Product Specifications
Bus voltage
21-30 VDC, KNX bus power
Bus current
≤ 12mA
Bus power
≤ 360mW
Sensing Distance
Installation Height 2.5m~3m, Radiation Range 5m~7m
Product Dimensions
Height H=40mm Diameter D=40mm
Opening Size
Φ31mm≤d≤Φ35mm
Installation Method
Embedded Installation
Installation Method
Embedded Installation
Shell material
ABS
Working Temperature
-5°C...+45°C
Storage Temperature
-25°C...+55°C
Transportation Temperature
-25°C...+70°C
Relative Humidity
Max 90%
Dimension
The device is installed using a ceiling-mounted recessed installation method. The opening diameter d is Φ31mm≤d≤Φ35mm, and the installation direction is perpendicular to the ground. To facilitate quick installation, it is essential to ensure that the operation, testing, inspection, and maintenance of the device are performed correctly.
Function
Infrared motion trigger control function
Infrared motion master-slave function
Motion monitoring function with 3 types of output data
Control output function to enable or disable infrared motion via object
