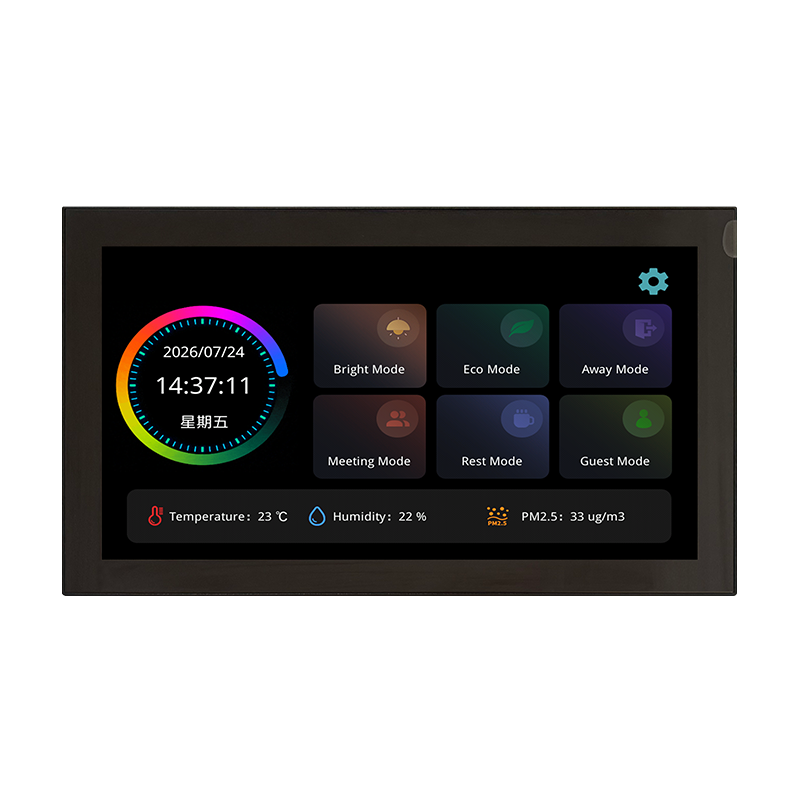

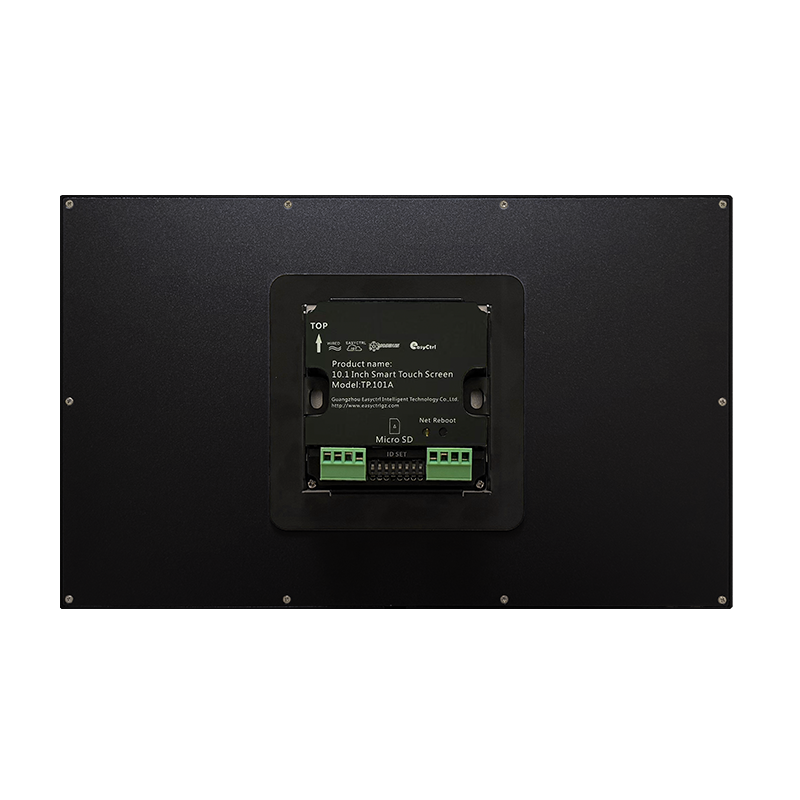

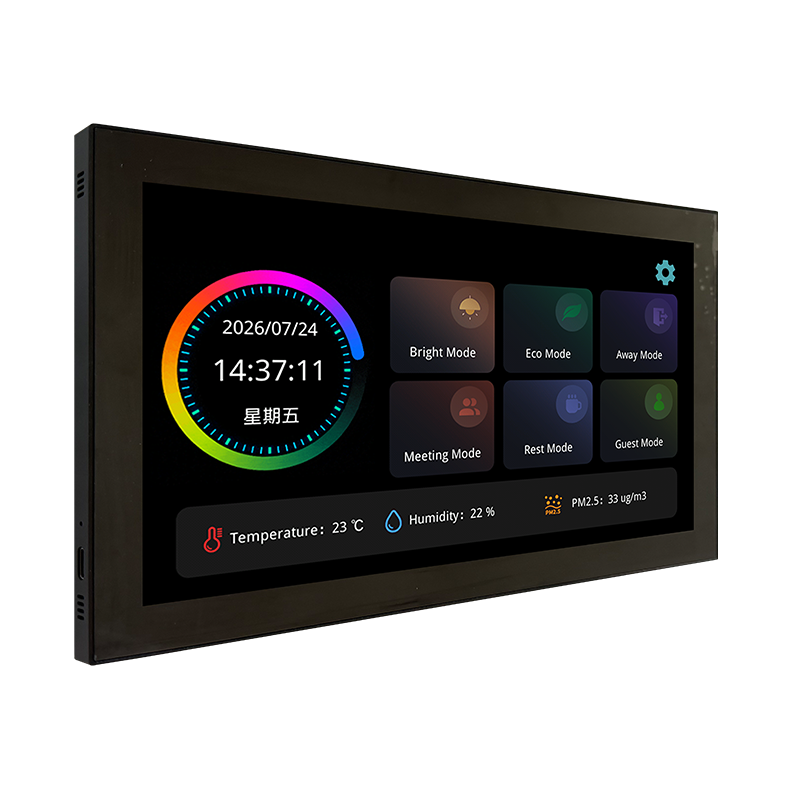

10.1 Inch Smart Touch Screen

Model No:TP.101A

10.1‑inch intelligent touch screen, serving as the system control unit, is generally installed locally. It is equipped with a 10.1‑inch industrial‑grade TFT display with 16‑bit 65K high‑color rendering. The user‑customizable interface supports 3D text and 3D images to create personalized user interfaces. A built‑in temperature and humidity sensor enables real‑time monitoring of ambient temperature and humidity. Proximity switch is integrated to realize gesture‑activated screen‑on and auto screen‑off when people leave. It features centralized control and two‑way communication, supporting individual or scene‑based control of devices including light switching, dimming, curtain opening/closing, scenes, air conditioners and audio equipment.

搜索

复制

Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
High-definition resolution
Supports bidirectional communication
Multi-angle rotation installation
Operation interface customization editing
Touch screen control
Timed control
Scene control
Simple wiring
Online program update
RS485 protocol
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤4.7W
Static Power Consumption
≤2.1W
Touch Control Mode
single point, sliding touch
Number Of Touches
the theory of infinite times and touch life is related to the working environment, dust and humidity
Resolution
1024*600
Touch Type
capacitive touch screen
Display Type
TFT LCD screen
Operating Temperature
-5℃~45℃
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93℃
Dimensions（L*W*H）
251.6mm*155.8mm*32mm
Net Weight
≤700g/pcs
Installation Method
standard 86 bottom box mounting
Opening Size (L * W)
74mm*74mm，Bottom box depth is greater than 40mm
Dimension

The touch screen adopts a standard 86-type back box for installation

Software Presentation
dalicdimmermodule1280
configuration software1280720
classroom
controlinterface1280
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
