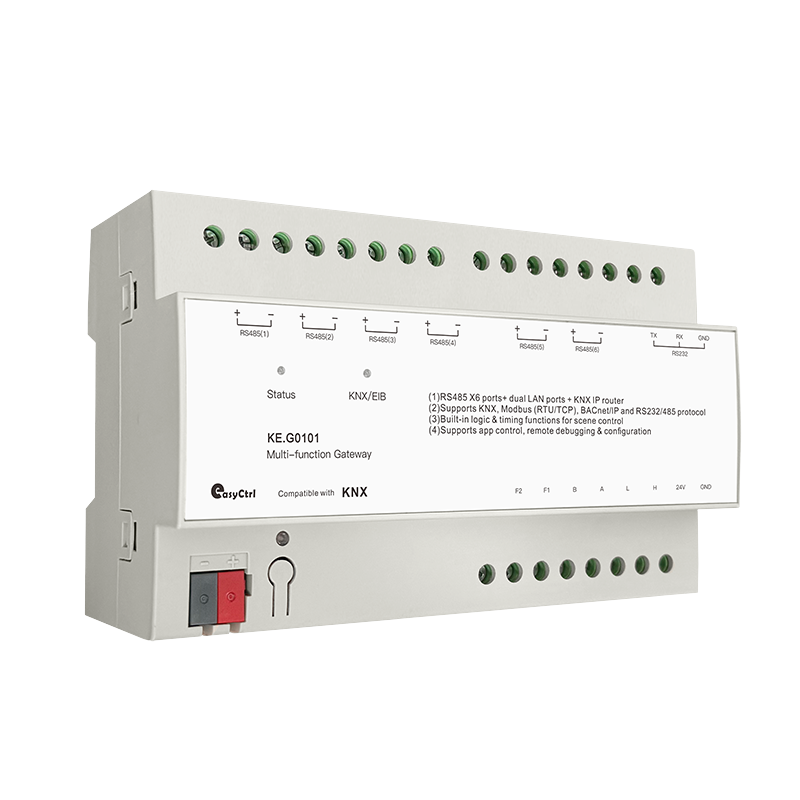

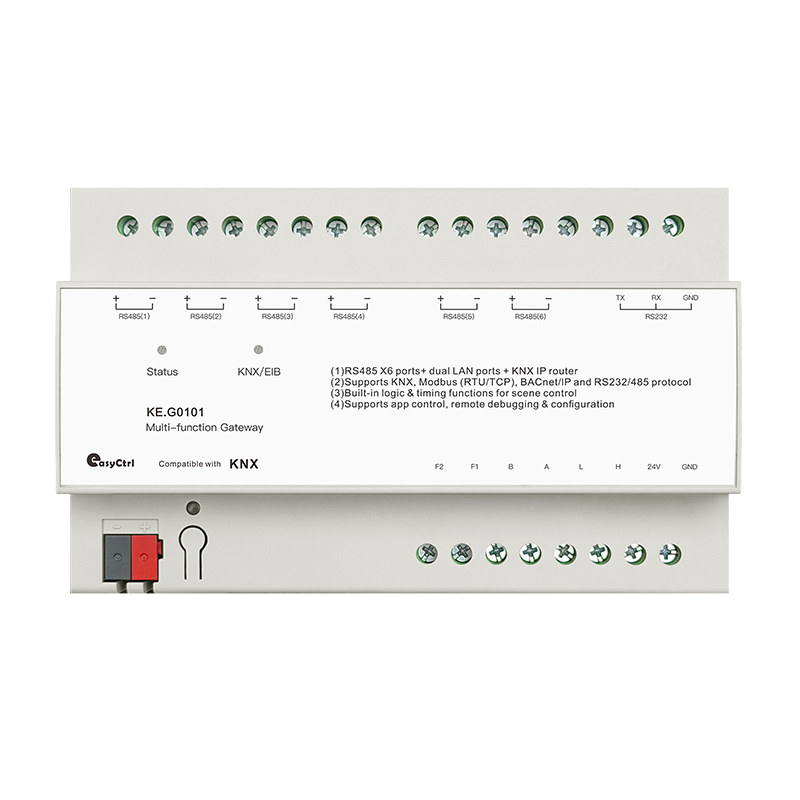

KNX Multi Function Gateway
KNX Multi-function Gateway Host. 1 channel KNX interface, 1 channel RS232 interface, 6 channels RS485 interface. Supports Modbus/TCP and Modbus/RTU for BA system integration; enables control of air conditioning, fresh air, underfloor heating and curtains.
The device is installed in the distribution box and can be installed on the 35mm DIN rail of DIN EN 60715 standard.
(1) Support remote debugging and configuration;
(2) Support Modbus master-slave control;
(3) KNX IP ROUTER function;
(4) Multiple independent serial communication interfaces;
(5) APP control: supports LAN and remote control;
(6) Loop function: supports cyclic sending and detection of equipment online;
(7) Logic function: built-in logic control, supports multiple logic operations;
(8) Bus transceiver: supports setting node information and comparing time, customizing scenes;
(9) Timing function: supports time, sunrise and sunset, holidays and longitude and latitude control;
(10) KNX system can be integrated with multiple systems/devices at the same time through serial port or network;
(11) Supports protocol conversion such as KNX, Modbus (RTU/TCP),
RS232/485, TCP/IP or UDP.
