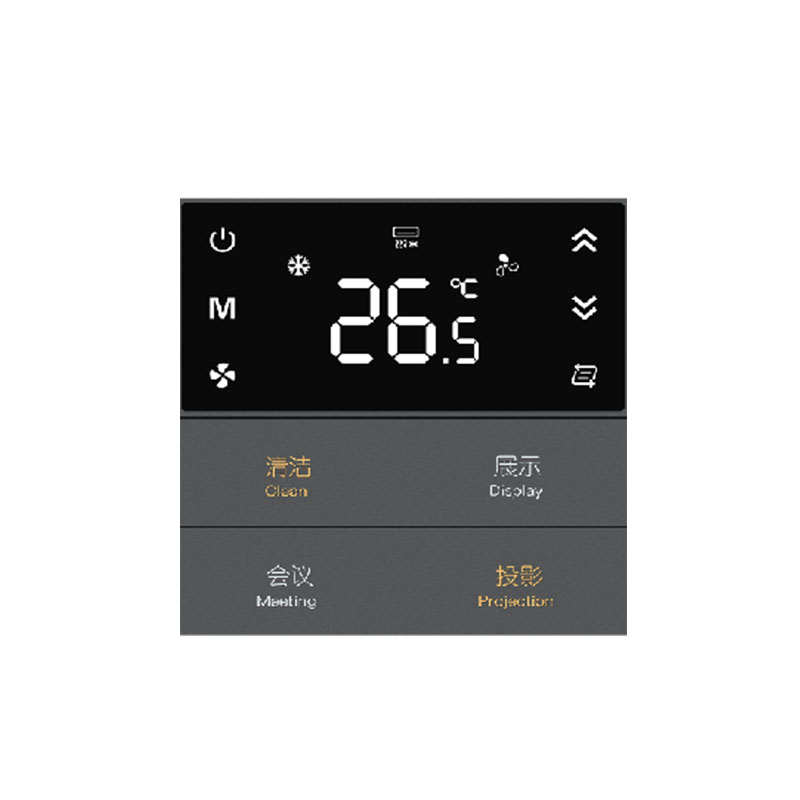

KNX E2 Multifunctional Thermostat Panel
KNX Multifunctional Thermostat Panel, Metal Frame, Zinc Alloy Metal Buttons. Dot indicator supports light transmission; engraved text and pattern markings on buttons do not support backlighting.KNX bus
The device is installed in a standard 80/86 junction box
(1) Control output function for air conditioning equipment;
(2) Control output function for fresh air equipment;
(3) Control output function for underfloor heating equipment;
(4) Switch and feedback display function for air conditioning, fresh air, and underfloor heating;
(5) Temperature setting and feedback display function for air conditioning and underfloor heating;
(6) Wind speed setting and feedback display function for air conditioning and fresh air, with low, medium, and high wind speeds;
(7) Mode setting and feedback display function for air conditioning, including cooling, heating, ventilation, and dehumidification modes;
(8) Dedicated display pages for air conditioning, underfloor heating, fresh air, and humidity;
(9) Built-in infrared sensor for easy screen illumination when someone is present and screen deactivation when someone leaves;
(10) Built-in temperature sensor supporting Celsius and Fahrenheit temperature display;
(11) Supports control of fresh air system, air conditioning system, underfloor heating system, and fan coil unit;
(12) Switch, curtain, dimming, and scene control functions;
(13) Long press, short press, and button backlight brightness adjustment functions.
