Smart Lighting Control System for the Underground Parking Lot of Sino-Singapore Tianjin Eco-Future Primary School

/upload/images/article/20250709/17520293126593380.jpg

Project information

Control Equipment

Dimmable Lights: LED lighting fixtures in public areas of the parking lot;

Non-dimmable Lights: Directional signage fixtures and emergency lighting fixtures in the parking lot.

Control Areas

The different sections of the underground parking lot.

Control Requirements

1.Enable switching and dimming control of lighting circuits in the public areas of the parking lot;

2.Configure multiple six-button smart switch panels in each area to support individual circuit switching, dimming adjustment, and scene-based lighting mode switching;

3.Install presence sensors in all public areas to automatically adjust lighting brightness when no vehicles or personnel are detected in the parking lot;

4.Achieve zoned lighting control functionality;

5.Support timed control and scene-based control;

6.Enable centralized control through intelligent lighting management software on PC.

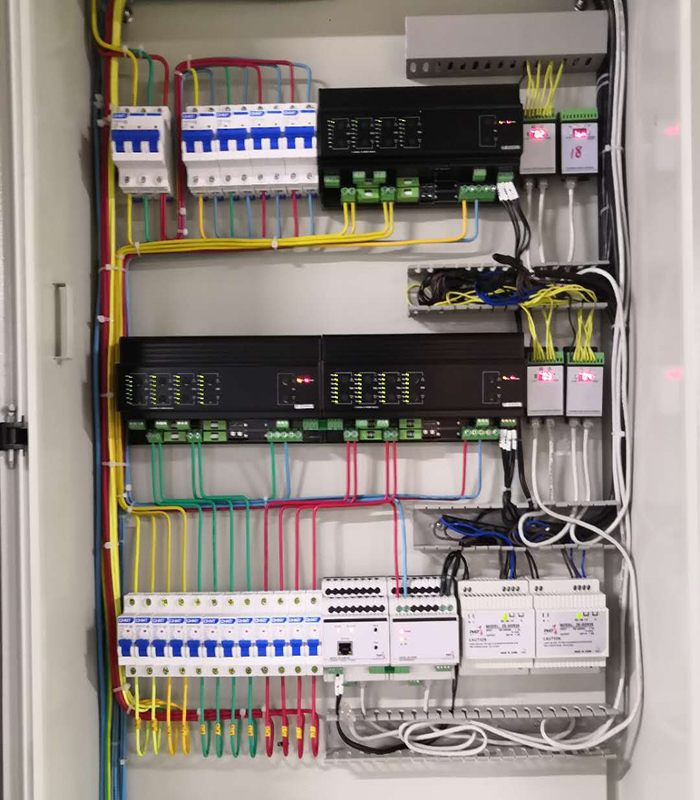

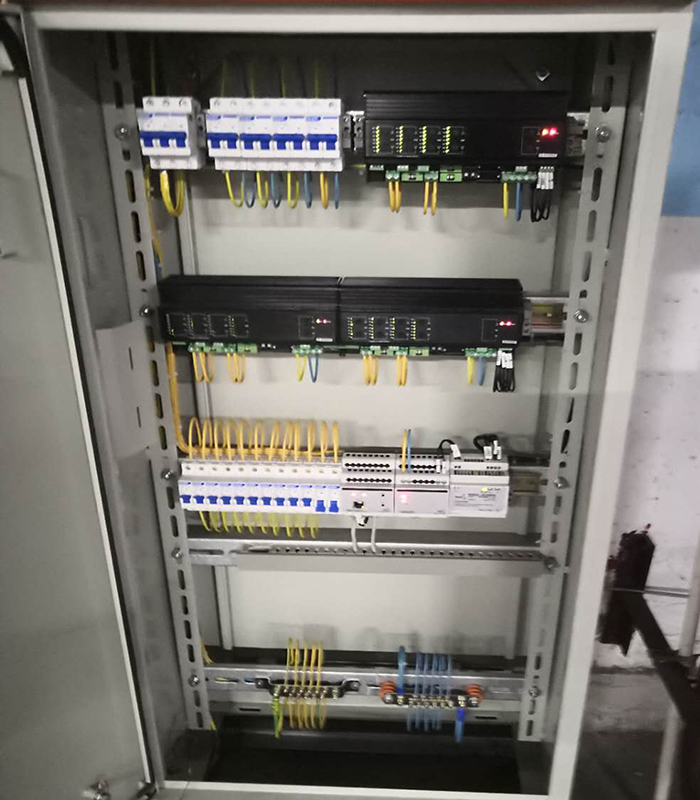

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 4 CH 5A Leading Edge TRIAC Dimming Module , Bus coupler, 8 CH 16A relay switch module, 8 CH Dry Contact Module, and 6-Button Smart Switch Panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via smart 6-key wall switches. The project also integrates presence sensors that automatically maintain low illumination levels when no vehicles or personnel are present in the parking lot, significantly reducing energy consumption and achieving intelligent facility management.

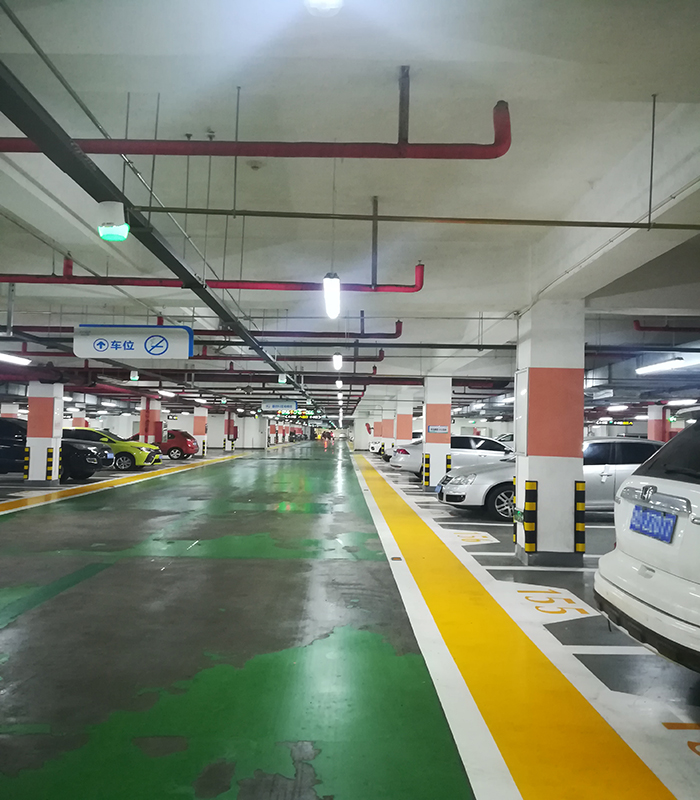

Performance Outcome

The intelligent 6-key wall switches enable switching control, scheduled control, and scene mode switching for lighting circuits across different parking zones. Meanwhile, the PC terminals in the monitoring room, equipped with intelligent lighting control software, achieve centralized lighting management. Developed by Easyctrl Intelligent, the EASYCTRL intelligent lighting control system efficiently manages the parking lot's lighting system—effectively reducing labor costs, improving operational efficiency, and significantly cutting energy consumption.

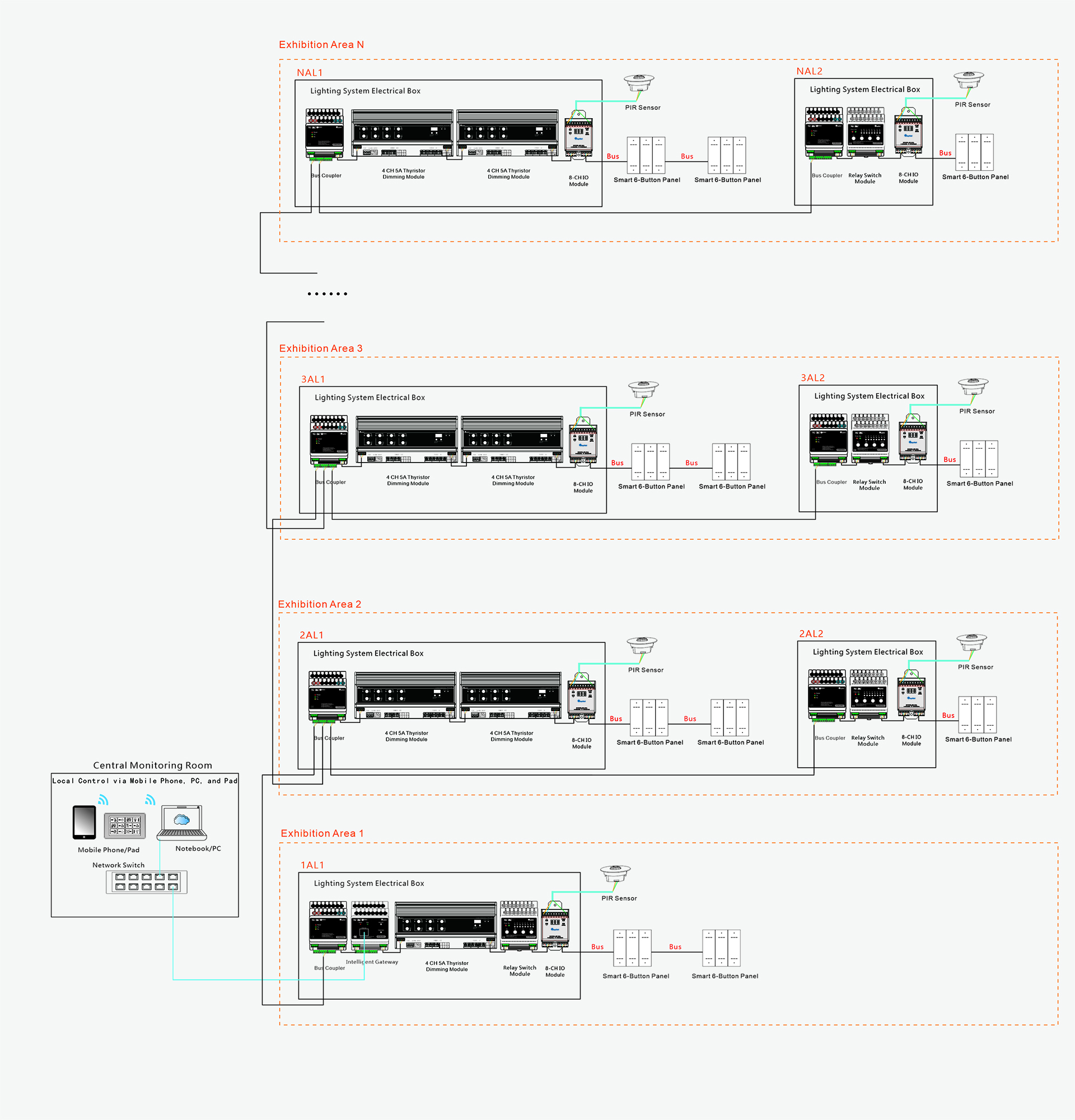

System Architecture Diagram

1920x2000 系统图.jpg
